This aluminum end cap with 4 x 10mm holes is for use with Watertight Enclosure for ROV/AUV (3″ Series). We designed these end caps to have a greater depth rating than the clear acrylic end caps. Depth rating to be determined.
Aluminum End Cap with 4 Holes (3″ Series)
€17.00
SKU: WTE3-M-END-CAP-4-HOLE-R1-RP
Product Description
Contents
Technical Details
Learn
- 1 x Aluminum End Cap with 4 x 10mm holes
- 6 x M3x12 screws
Specifications
| Parameter | Value | |
|---|---|---|
| Material | Aluminum 6061-T6 | |
| Surface Finish | Hard Anodized Black | |
| Weight in Air | 100 g | 0.22 lb |
| Depth Rating | 400 m | 1312 ft |

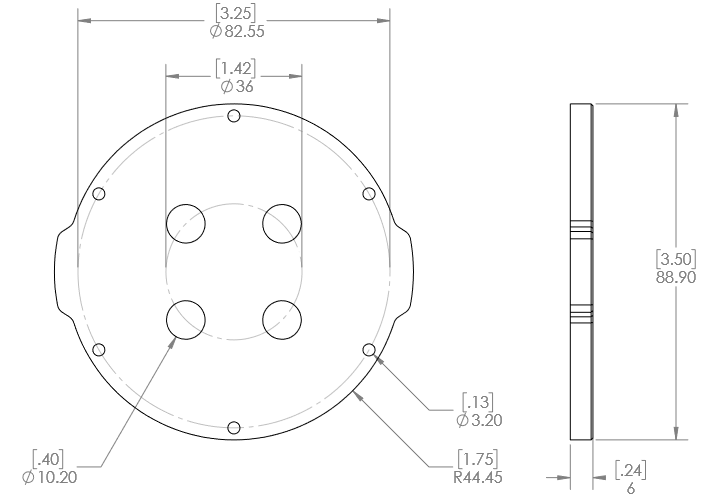

2D Drawings
3D Models
WTE3-M-END-CAP-4-HOLE-R1 (.zip)
Guides
Using the Vacuum Test Plug
Ensure the o-ring seals are good on our WTE with this quick test!
